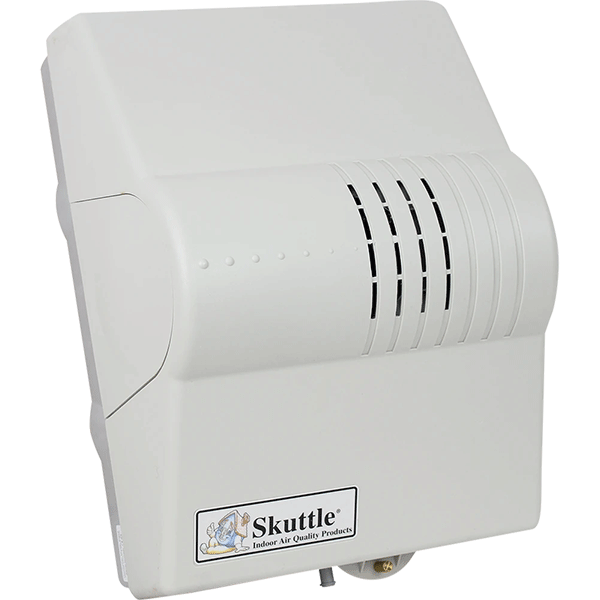

Skuttle 2002 Humidifier Parts

Search Results for

    Parts

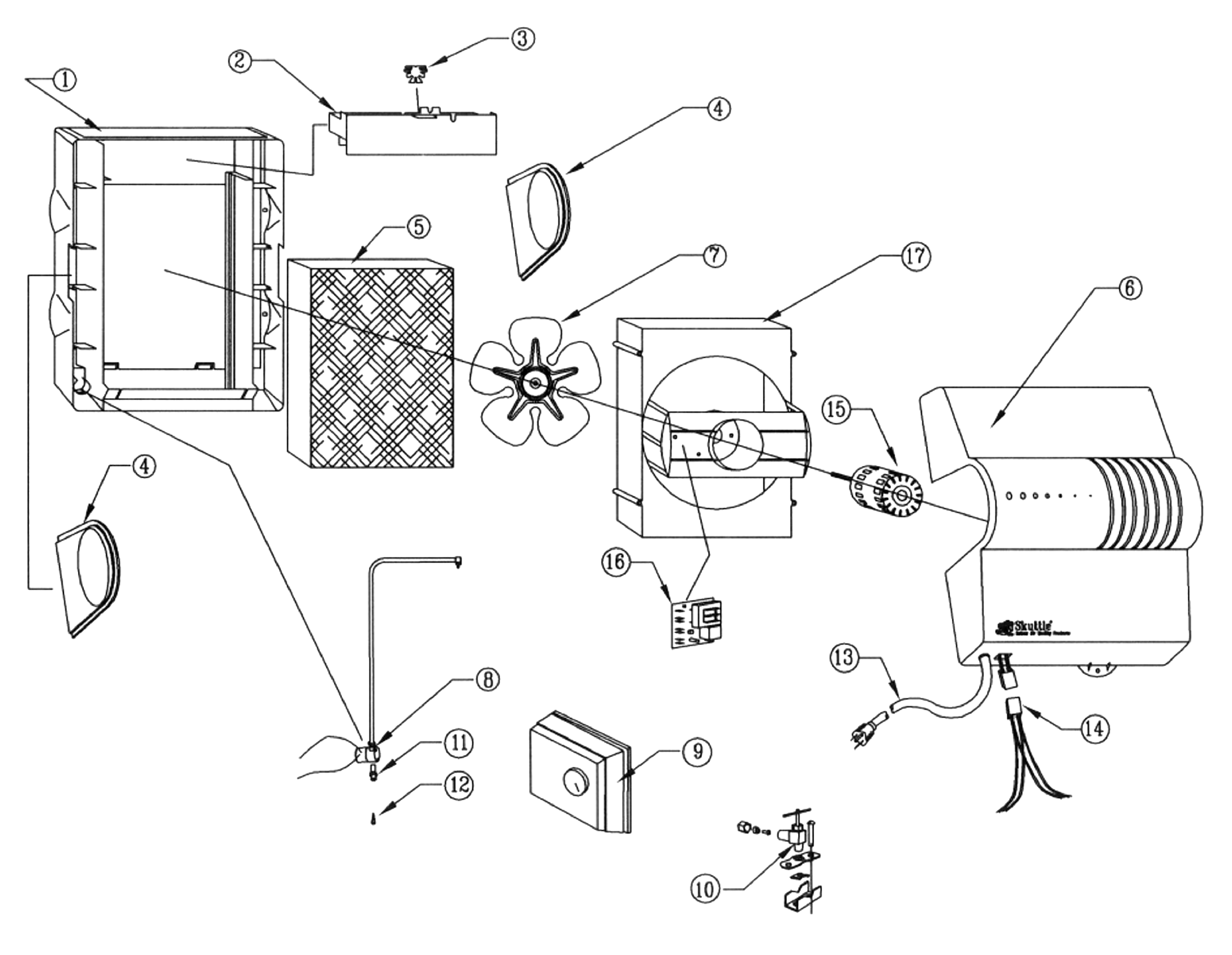

    Diagram

    Parts
    1
    2
    3
    4
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17

    Parts

    1. 1
      Mounting Base
      Mounting Base
      SKU: 0001730091
    2. 2
      Drip Tray
      Drip Tray
      SKU: 0000602055
    3. 3
      Wick
      Wick
      SKU: 0001317091
      $9.95
    4. 4
      Solid Side Piece
      Solid Side Piece
      SKU: 0001730089
    5. 5
      Tune UP Kit Model 2002/2102
    6. 5
      Humidifier Filter
      Humidifier Filter
      SKU: A041725051
    7. 6
      Cover
      Cover
      SKU: A000641169
    8. 7
      Fan Blade
      Fan Blade
      SKU: 0001318080
    9. 8
      Solenoid Valve Assembly 24 Volt
    10. 9
      Automatic Humidistat
      Automatic Humidistat
      SKU: SEH7100000
    11. 10
      Saddle Valve
      Saddle Valve
      SKU: A001128005
      $15.30
    12. 11
      Orifice & Filter Fitting
    13. 12
      Water Filter Strainer
      Water Filter Strainer
      SKU: 0001319051
      $6.08
    14. 13
      Power Supply Cord
      Power Supply Cord
      SKU: 0000811123
    15. 14
      Two Piece Connector Assembly
    16. 15
      Fan Motor
      Fan Motor
      SKU: 0001721048
    17. 16
      Isolation Relay
      Isolation Relay
      SKU: 0000431034
      $120.00
    18. 17
      Fan Shroud
      Fan Shroud
      SKU: 0001730092

    Parts Not In Diagram

    1. Not Shown
      Solenoid Valve Assembly 24 Volt
      $77.25
    2. Not Shown
      Analog Humidistat
      Analog Humidistat
      SKU: 4655
      (Substitute part number)
      $29.95
    3. Not Shown
      Parts Kit
      Parts Kit
      SKU: R002000000
      (Substitute part number)
      $15.00
